Arion E40

Arion E40
The Arion re-imagined in a fully forward facing four seat configuration
  • 4-person forward facing
  • LSV Compliant
  • 51.2v 105Ah Lithium Battery
  • 5KW KDS Motor
  • 14” Wheel with Street Tires
  • 350A Controller
  • 10” Touchscreen
  • Apple CarPlay & Android Auto
  • DOT Windshield

Standard Specifications

Specifications

Powertrain and Battery

Electricals

Chassis

Body & Add-Ons

Axios Arion Color Option available

Color Options

Color Options

RAL 5026 Blue

RAL 9003 White

RAL 180-M Glacier Blue

RAL3006 Valencia Red

RAL 6027 Tiff Blue

RAL 810-M Gun Grey

RAL 9005 Black

RAL 2007 Luminous Bright Orange
Axios Arion E40 Specifications

Specifications

Specifications

CategorySpecificationDetails
Power & ElectricalMotor5Kw AC
ControllerGeruosi
Controller Size48V 350A
BatteryLi-ion 105Ah
Charger15A
Charge Time5–7 hrs
LSV ReadyStandard
Chassis & PerformanceFrameSteel
Power SteeringN/A
Brake SystemDisc Brakes
Parking BrakeElectronic
Front SuspensionIndependent
Rear SuspensionTrailing Arm
Wheel14″ Aluminum
Maximum Speed25 mph
Ground Clearance5.5 in
GVWR (lbs)2,082
Vehicle Weight (lbs)1,156
Dimensions & CapacityOverall Dimension (inches)118″x51″x77″
Passenger Capacity4

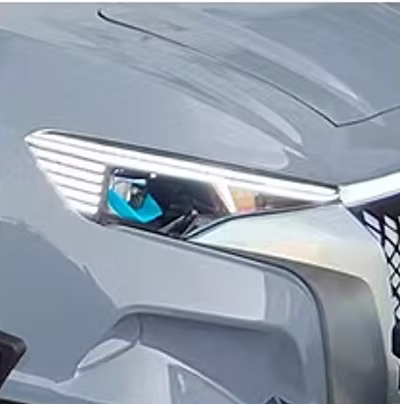

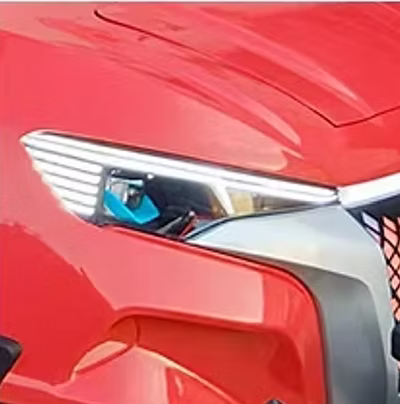

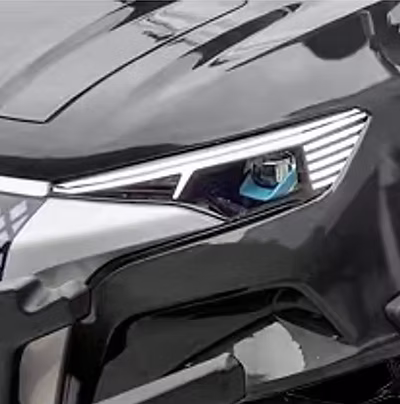

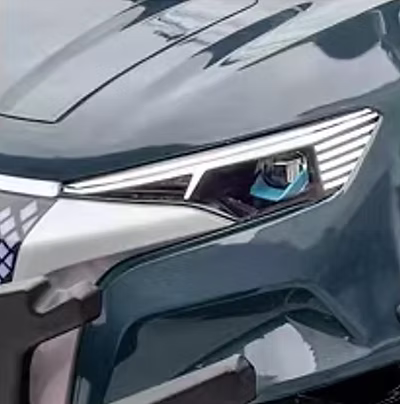

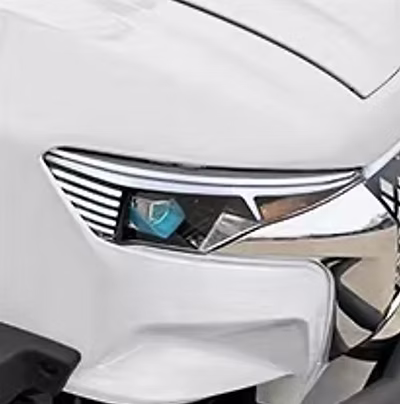

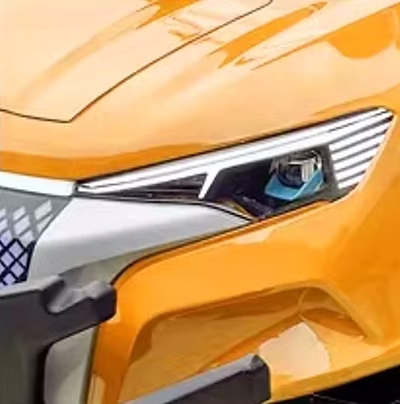

Lighting & ExteriorHead LightsLED
Tail LightsLED
Canceling Turn SignalsStandard
LED Lights_
Running Boards
WindshieldFolding
Audio & InteriorSpeakers2
Soundbar
Subwoofer
Tilt Steering WheelStandard
10” Infotainment TouchscreenStandard
Wireless Phone ChargingStandard
USB & USB C PlugsStandard
